Receivers Instructions:
  • If Shadow Log® lcd-icon icon is visible on LCD, DO NOT PRESS START or trip data will be erased.
  • Press and hold STOP button until the word STOP appears without flashing.
  • If a temperature excursion occurred, alarm icon is visible and red LED will be flashing.
  • Press START button to display temperature statistics and alarm details. A new statistic is shown with each button press.
  • Pull out USB connector from the bottom of the logger.
  • Insert into USB port of PC with Adobe Reader installed. PDF and CSV reports will be automatically generated.
Models
Models 40060 40061 40062 40063 40064 40065 40066 40067
Alarm Settings Low: 15ºC
High:25ºC		 Low: 2ºC
High: 8ºC		 Low: -25ºC
High: -15ºC		 Low: 15ºC
High: 30ºC		 Low: 2ºC
High: 25ºC		 Low: -25ºC
High: 8ºC		 Low: 2ºC
High: 8ºC		 Low: 15ºC
High: 25ºC
Logging Interval 15 minutes 15 minutes 15 minutes 15 minutes 15 minutes 15 minutes 5 minutes 5 minutes
Duration 45 Day 45 Day 45 Day 45 Day 45 Day 45 Day 42 Day 42 Day
Start Delay 60 Minutes 60 Minutes 60 Minutes 60 Minutes 60 Minutes 60 Minutes 15 Minutes 15 Minutes
Time Zone GMT GMT GMT GMT GMT GMT GMT GMT

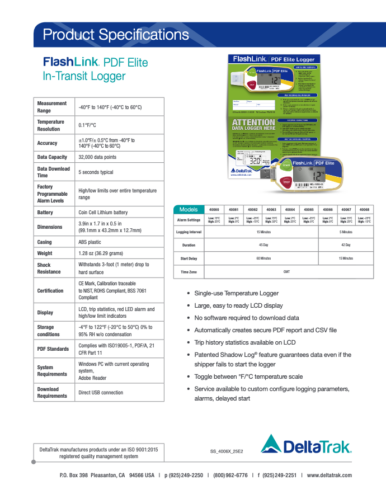

Specifications
Measurement Range
-40°F to 140°F (-40°C to 60°C)
Temperature Resolution
0.1°F/°C
Accuracy
±1.0°F from -40°F to 140°F (±0.5°C from -40°C to 60°C)
Data Capacity
32,000 data points
Data Download Time
5 seconds typical
Factory Programmable Alarm Levels
High/low limits over entire temperature range
Battery
Coin Cell Lithium battery
Dimensions
3.9 in x 1.7 in x 0.5 in (99.1 mm x 43.2 mm x 12.7 mm)
Casing
ABS plastic
Weight
1.28 oz. (36.29 grams)
Shock Resistance
Withstands 3-foot (1 meter) drop to hard surface
Certification
CE Mark, Calibration traceable to NIST, ROHS Compliant,
BSS 7061 Compliant
Display
LCD, trip statistics, red LED alarm and high/low limit indicators
Storage conditions
-4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o
condensation
PDF Standards
Complies with ISO19005-1, PDF/A, 21 CFR Part 11
System Requirements
Windows PC with current operating system, Adobe Reader
Download Requirements
Direct USB connection
Troubleshooting

What to do when the Shipper inadvertently presses the Stop button while in shadow log mode.

If the shipper presses STOP while in Shadow Log mode, then download the data:

  • Pull out the USB connector from the bottom of the logger.
  • Insert into USB port of PC with Adobe Reader installed. PDF and CSV reports will be automatically generated.
